Kalamazoo’s Mt Olympus drilling gives Ashburton a larger development runway

Mt Olympus drilling strengthens Ashburton’s development case

Kalamazoo Resources Limited (ASX:KZR) is moving Ashburton into a more consequential phase: the company now has a denser geological dataset, a pipeline of growth drilling and fresh capital aimed at turning Mt Olympus from a resource story into a mine-planning exercise.

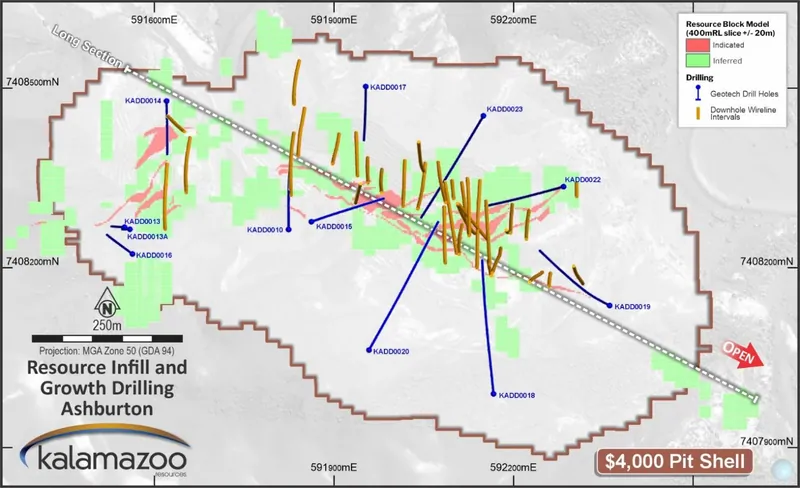

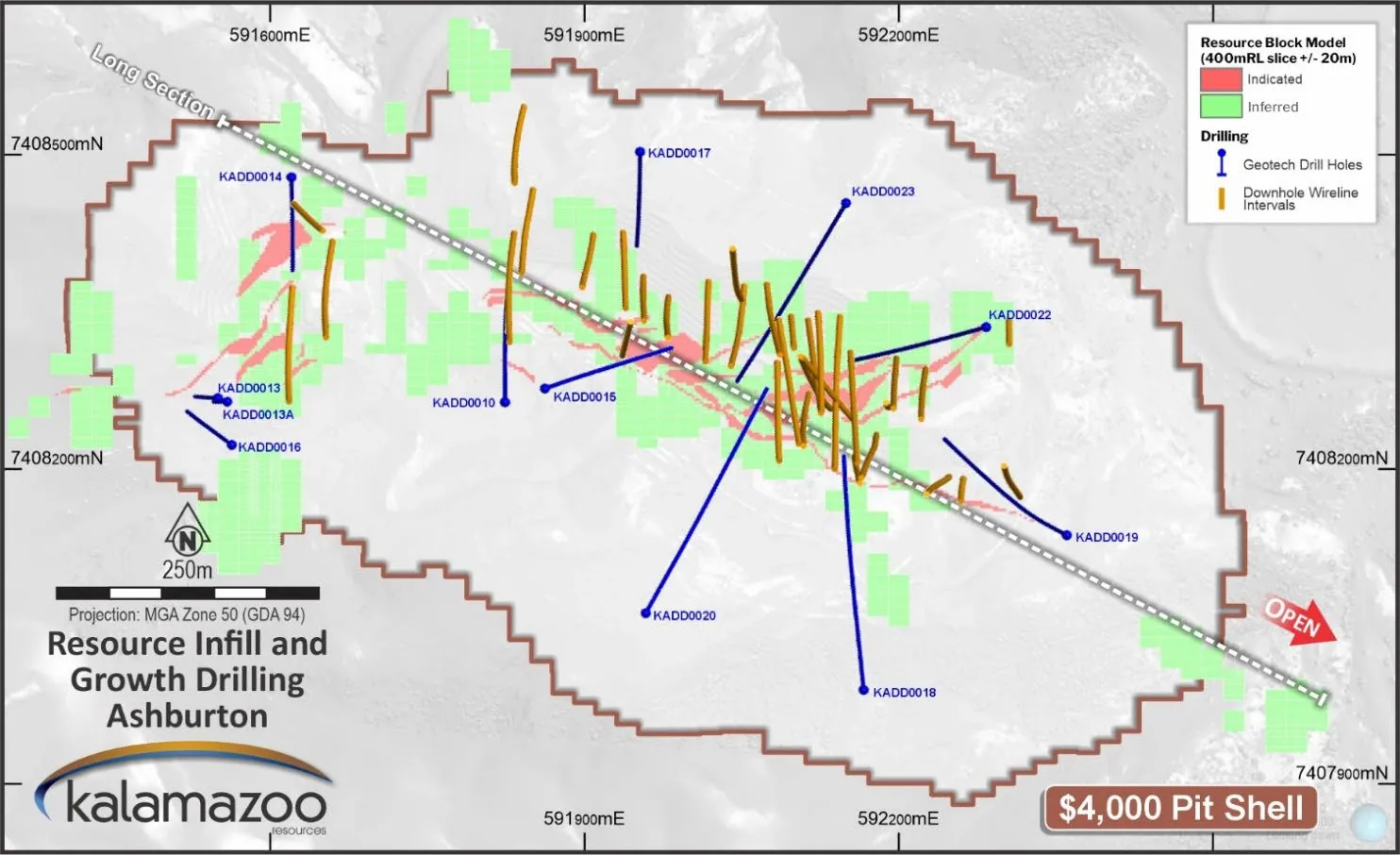

“New geotechnical drilling of 12 holes for 2,662m, together with approximately 6,700m of new downhole.”

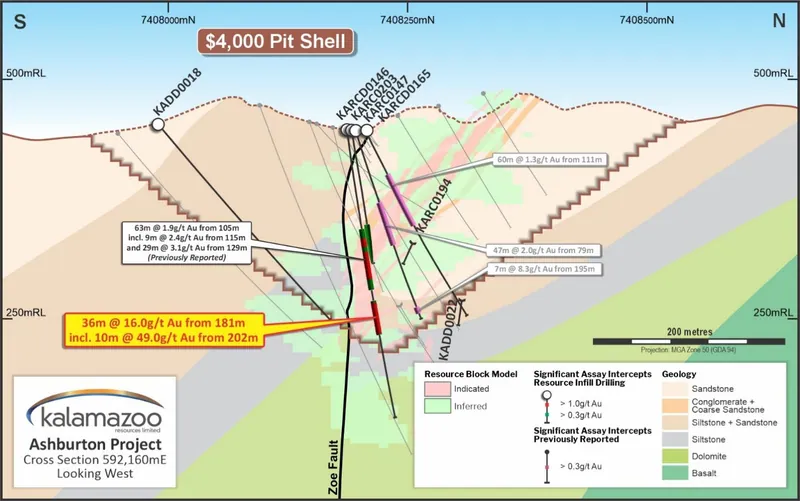

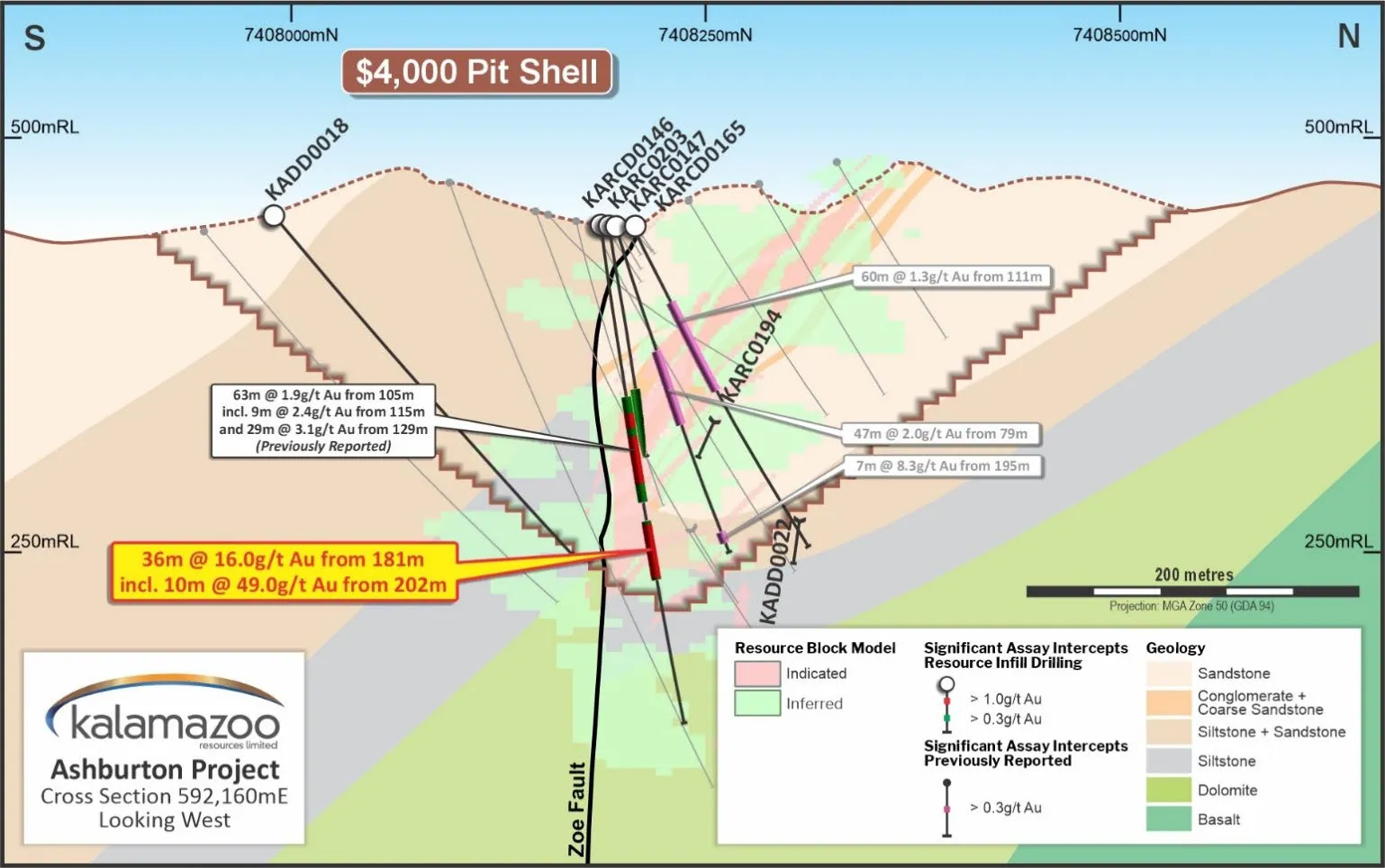

“Mt Olympus cross section 592160mE looking west and centred on drill hole KARC0146 section showing drill traces and significant assay intercepts from recent Resource Infill drilling.”

Caption and image © Kalamazoo Resources Limited. From “Quarterly Activities Report”, 30 Oct 2026.

The headline drilling numbers are difficult to ignore. Kalamazoo’s 72-hole, 13,726-metre Mt Olympus resource-definition program delivered 38 intercepts above 50 gram-metres, including 16 above 100 gram-metres. Standout results included 36 metres at 16 grams per tonne gold, including 10 metres at 49 grams per tonne, alongside 20 metres at 19 grams per tonne, 74 metres at 4.1 grams per tonne and 50 metres at 4.9 grams per tonne.

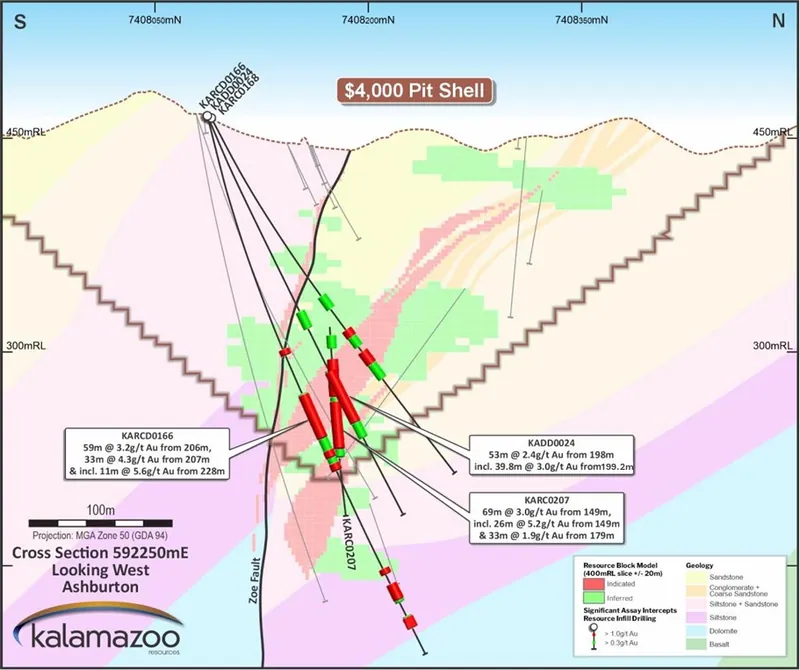

“Mt Olympus cross section 592250mE looking west and centred on drill hole KARCD0166, KADD0024 and KARC0207 which have returned broad high-grade mineralised intersections…”

The program reduced spacing to about 20 metres by 20 metres across key areas and confirmed mineralisation beyond the existing resource envelope while remaining within the conceptual open-pit shell used in the Ashburton Scoping Study. That does not establish an economic reserve, but it gives the company more information to work with as it updates the resource model and mine plan. The results build on the earlier Mt Olympus high-grade drilling, which had already identified broad and high-grade zones ahead of the resource update.

Resource update and feasibility study set the next tests

Kalamazoo expects the updated Mt Olympus Mineral Resource Estimate in the fourth quarter of 2026. It will incorporate roughly 25,000 metres of drilling since the previous 2022 estimate, more than 28,000 sulphur assays, 12 geotechnical holes totalling 2,662 metres and about 6,700 metres of downhole wireline logging.

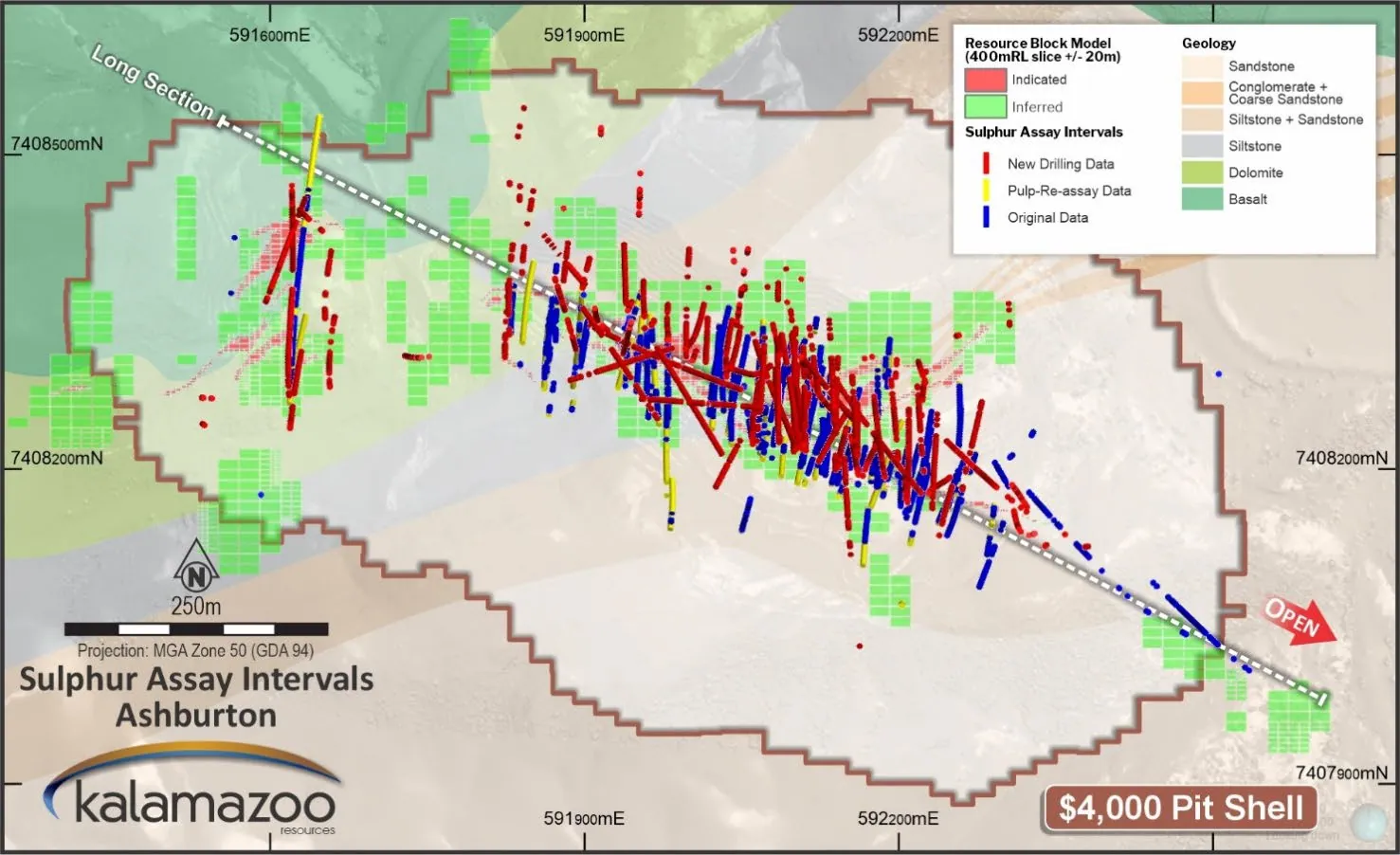

“Plan view of the Mt Olympus deposit showing the extent of sulphur assays. Over 28,000 sulphur assays.”

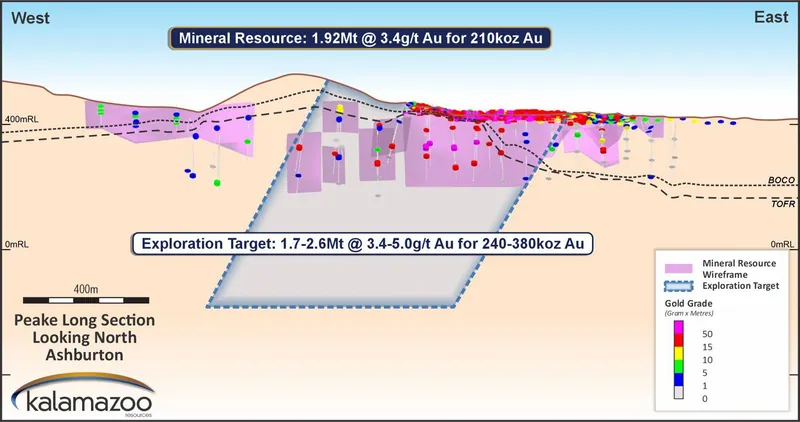

“Resource Growth Drilling”

Caption and image © Kalamazoo Resources Limited. From “Quarterly Activities Report”, 30 Oct 2026.

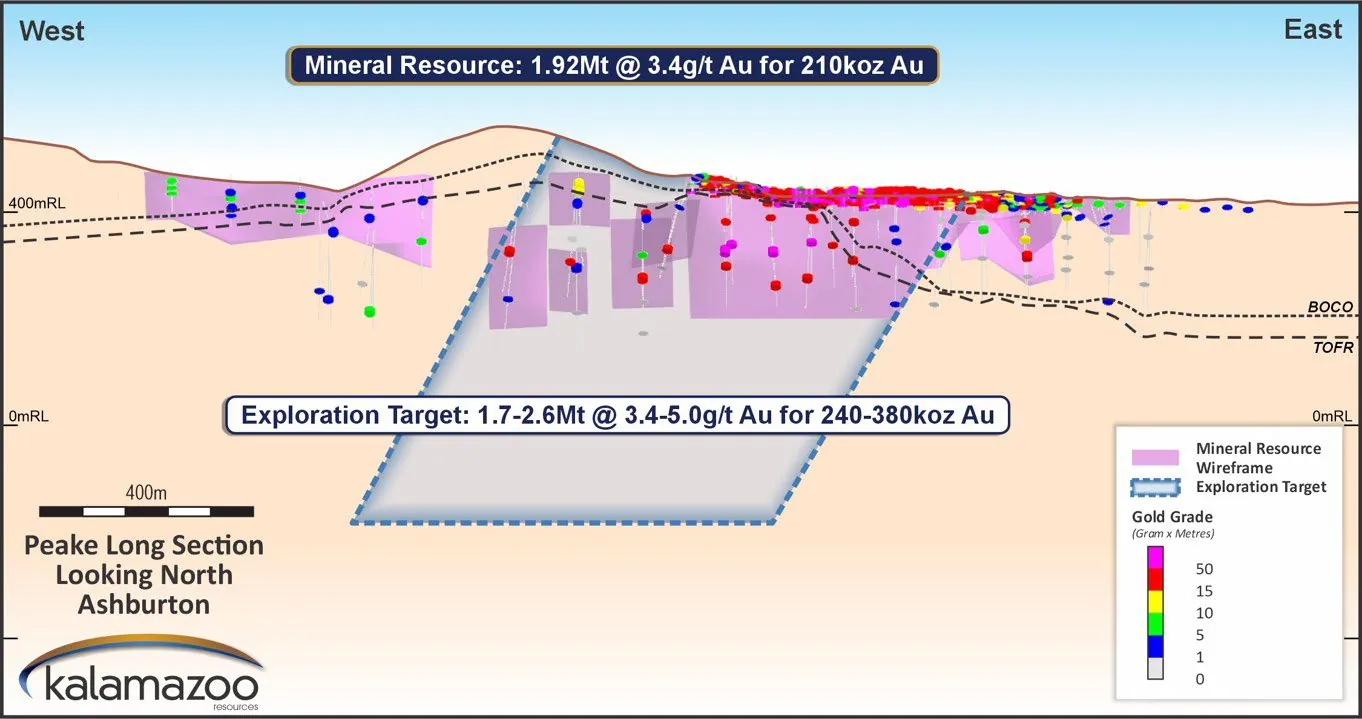

Growth drilling has also begun beneath Mt Olympus and down-plunge of the conceptual pit, while work at Peake is testing extensions below its historical open pit. Peake currently carries a resource of about 1.92 million tonnes at 3.4 grams per tonne for 210,000 ounces of gold, although the company’s larger exploration target remains conceptual and cannot be treated as a Mineral Resource.

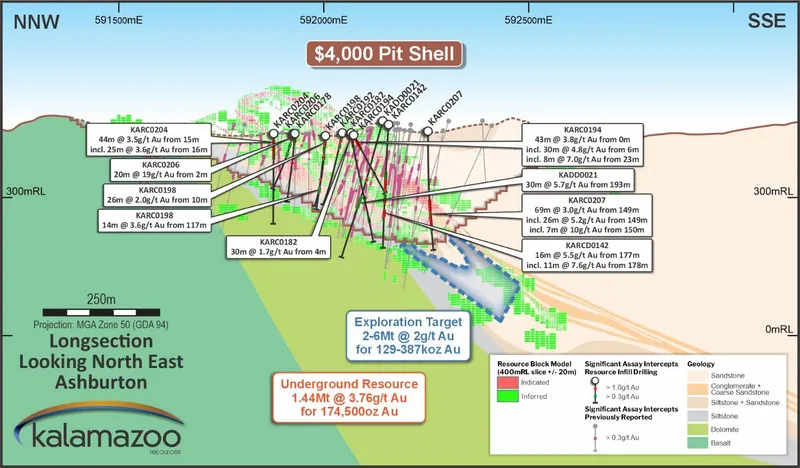

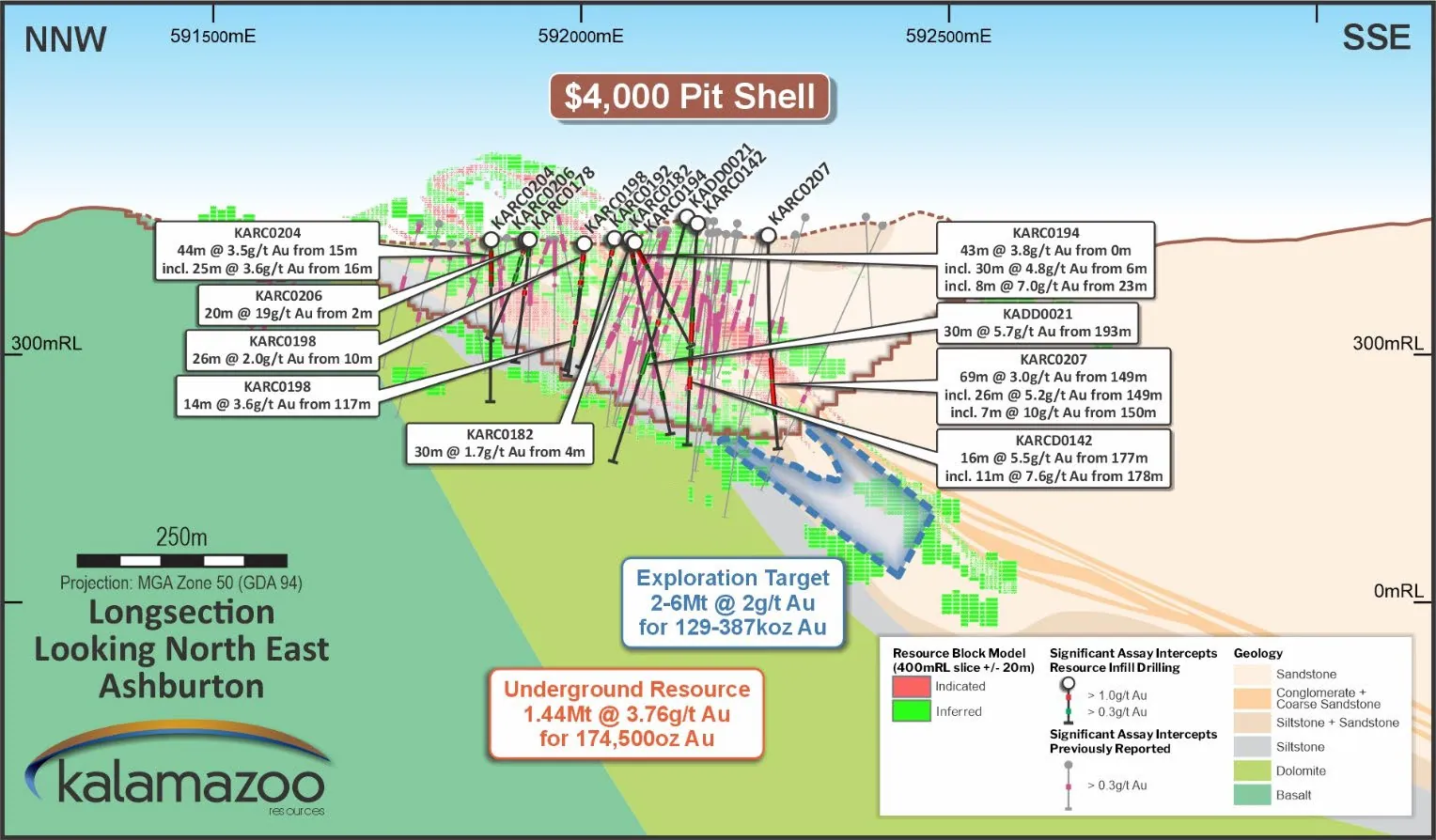

“Mt Olympus long section showing drill traces and significant assay intercepts from recent Resource Definition Drilling.”

The pre-feasibility study is targeted for completion in April 2027. Kalamazoo says the updated resource and ongoing drilling will feed mine optimisation, future ore-reserve estimation and project economics. The central question is therefore no longer whether Mt Olympus has impressive intersections, but how much of that mineralisation can survive the conversion from drill results to a defined, financeable mine plan.

Capital raising eases the immediate funding pressure

Kalamazoo completed an oversubscribed A$8 million placement in July at A$0.12 a share, then announced firm commitments for a further A$10 million placement at A$0.18 a share, a 29% premium to the last closing price and a 27% premium to the 15-day VWAP used for the announcement. The second raise includes A$7.84 million from Muqasab SPV Holdings, which is expected to become a 9.9% strategic shareholder on completion, while YT International’s holding is expected to rise from about 6.6% to 8.5%.

The placement is intended to fund resource-growth drilling, the updated resource, the Ashburton PFS, early feasibility work and an accelerated evaluation of Xanadu as a potential second development opportunity. It follows the A$10m premium placement, which was reported as strategic backing for Ashburton drilling, feasibility work and Xanadu evaluation.

September cash balance highlights execution risk

The cash-flow statement provides a less comfortable counterpoint to the drilling narrative. Kalamazoo spent A$8.14 million on exploration and evaluation during the quarter, with total relevant outgoings of A$8.787 million. After the July placement and other cash movements, cash and equivalents stood at A$670,000 on 30 September, which the Appendix 5B calculated as 0.1 quarters of funding with no unused finance facilities.

The company said it did not expect the quarter’s spending rate to continue because drilling activity is expected to reduce after the Mt Olympus program and PFS work. It also pointed to the post-quarter A$10 million placement as the basis for continuing operations and meeting its objectives. The timing of that capital, its completion and the pace of expenditure will matter as much as the next batch of assays.

Mt Piper expands the exploration portfolio

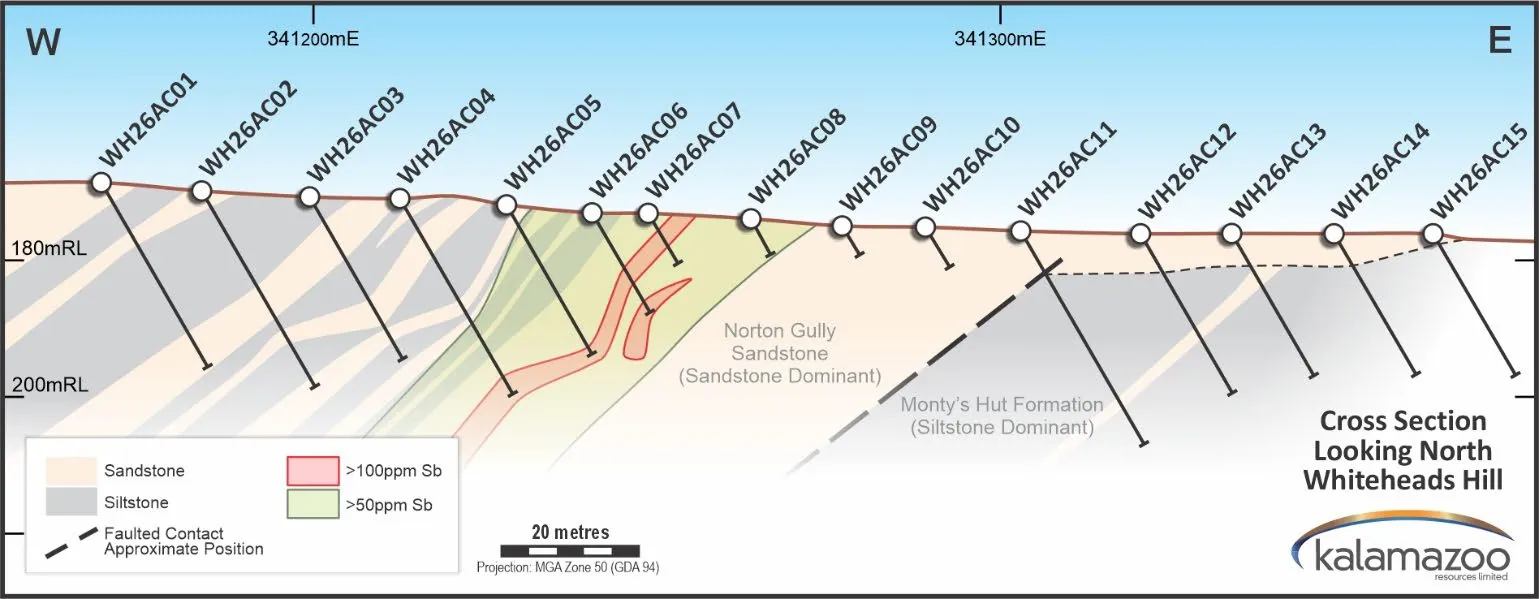

“Cross section of aircore drilling traverse looking north with Antimony results on interpreted geology at Whiteheads Hill.”

Outside Ashburton, Kalamazoo expanded its 100%-controlled Mt Piper gold-antimony position in Victoria to 1,574 square kilometres and secured continuous coverage over a 15-kilometre structural corridor through Whiteheads Hill. Reconnaissance aircore drilling there identified anomalous antimony and gold, including a three-metre zone above 100 parts per million antimony with a peak of 155 parts per million and gold of up to 68 parts per billion. The company characterises those results as sub-economic, making the project an exploration option rather than a near-term development asset. The expanded ground position and early results were detailed in the 15km Mt Piper corridor coverage.
